35 W Amplifier (T359E)

Details
Written by: Newton C. Braga

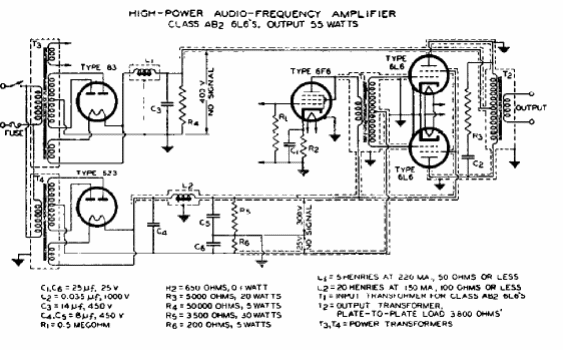

      This class AB2 amplifier was obtained in a 1937 RCA tube manual. The circuit includes the dual high voltage power supply.
