100MHz Phase Meter (T289E)

Details
Written by: Newton C. Braga

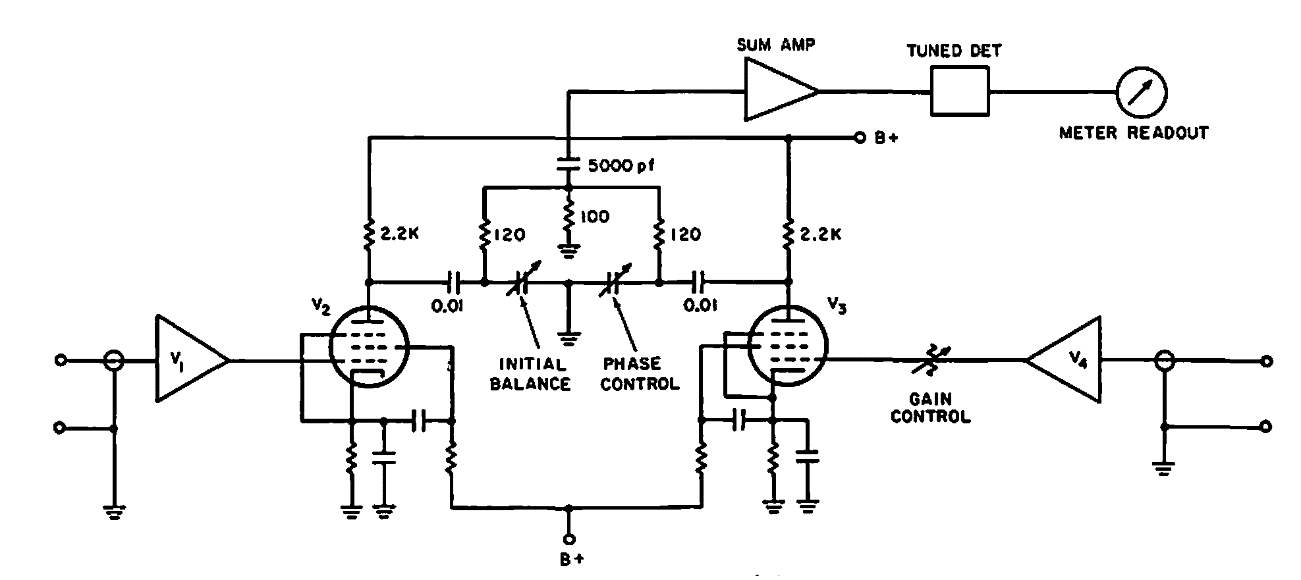

    This 100 MHz bridge circuit was found in an American 1970s documentation. The supply voltages are not indicated, nor are the tubes.
