Power Supply For the 55 W Amplifier (V6224S) (T225E)

Details
Written by: Newton C. Braga

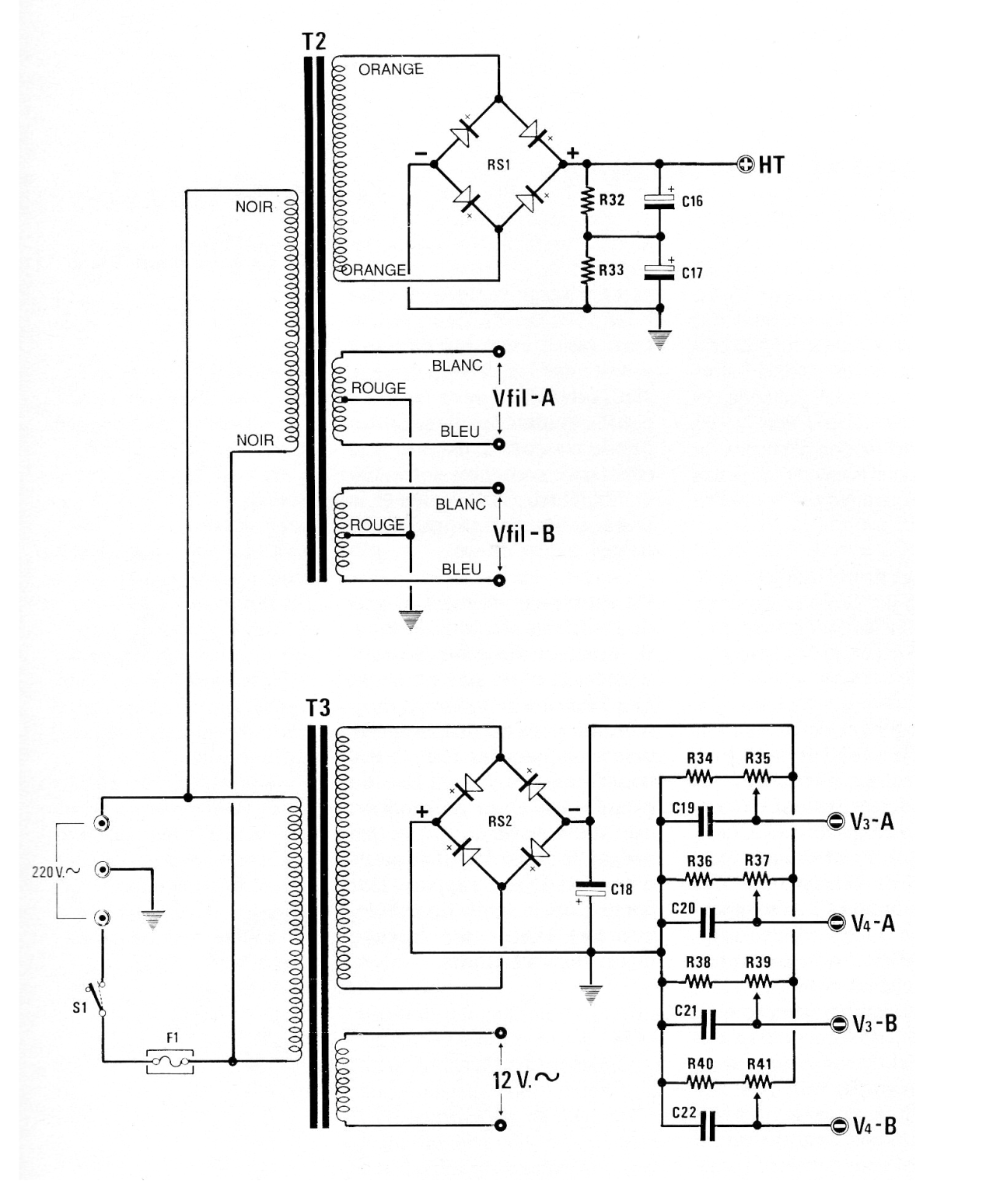

This is the power supply for the EL34 tube amplifier given in V234. This power supply supplies all necessary voltages to the circuit.
