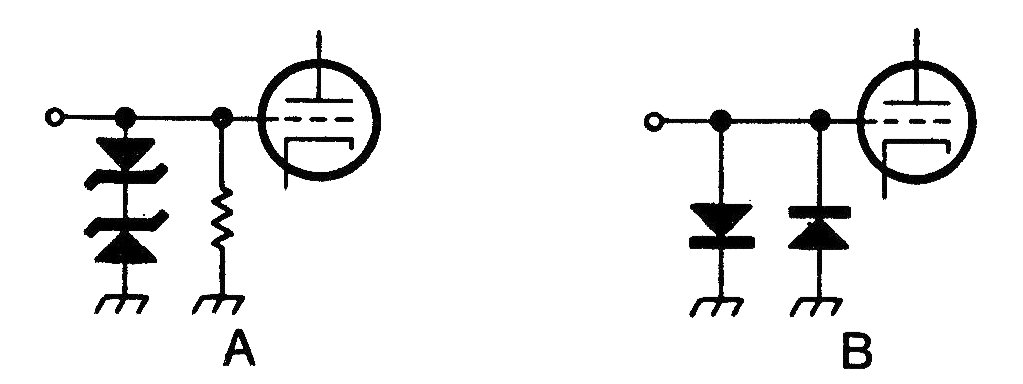

The figure shows how to implement limiters with silicon diodes. The reaper cuts off the peaks of a signal and can function as noise limiter or amplitude limiter of a signal.
| Haga click en la imagen para ampliar |
Limiters with diodes (T208E)
- Details
- Written by: Newton C. Braga
