Adapter to SSB and CW reception (T204E)

Details
Written by: Newton C. Braga

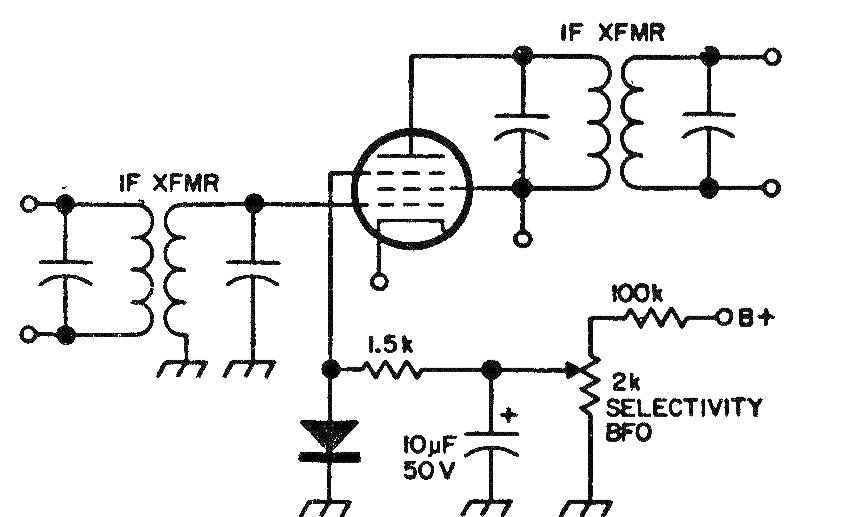

     This circuit shows how to make an adaptation on an AM receiver to receive CW and SSB signals. The circuit is from an 80's documentation. The diode is commonly used.
