VFO with tube (T203E)

Details
Written by: Newton C. Braga

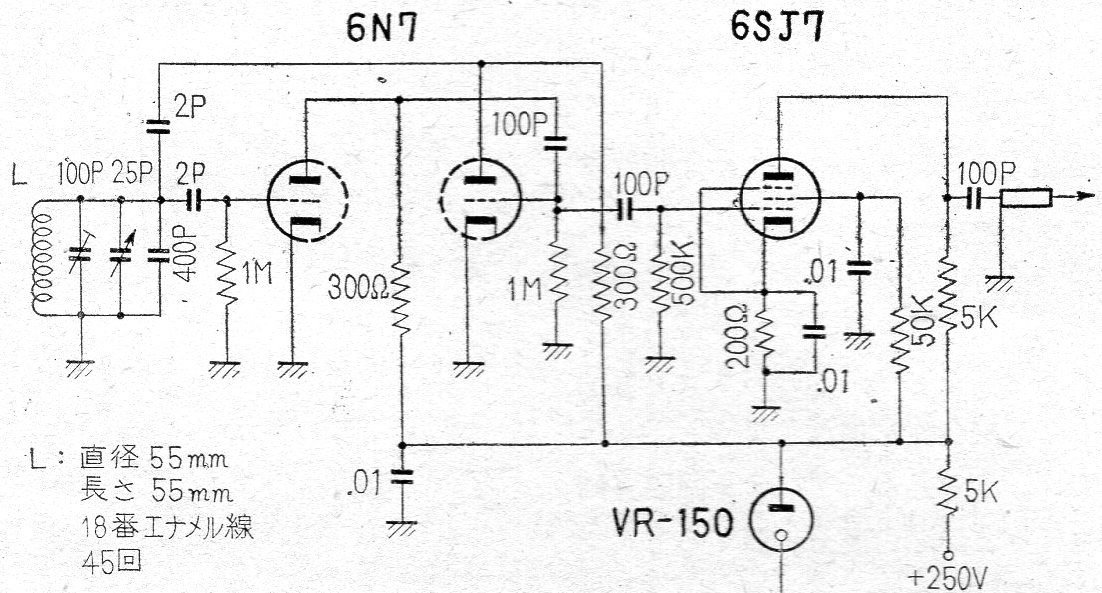

     This variable frequency (VFO) oscillator was found in a Japanese publication of 1962. Coil details (in Japanese, but can be deduced) are next to the diagram covering the 3.5 MHz band.
