27 MHz Remote Control Receiver (T186E)

Details
Written by: Newton C. Braga

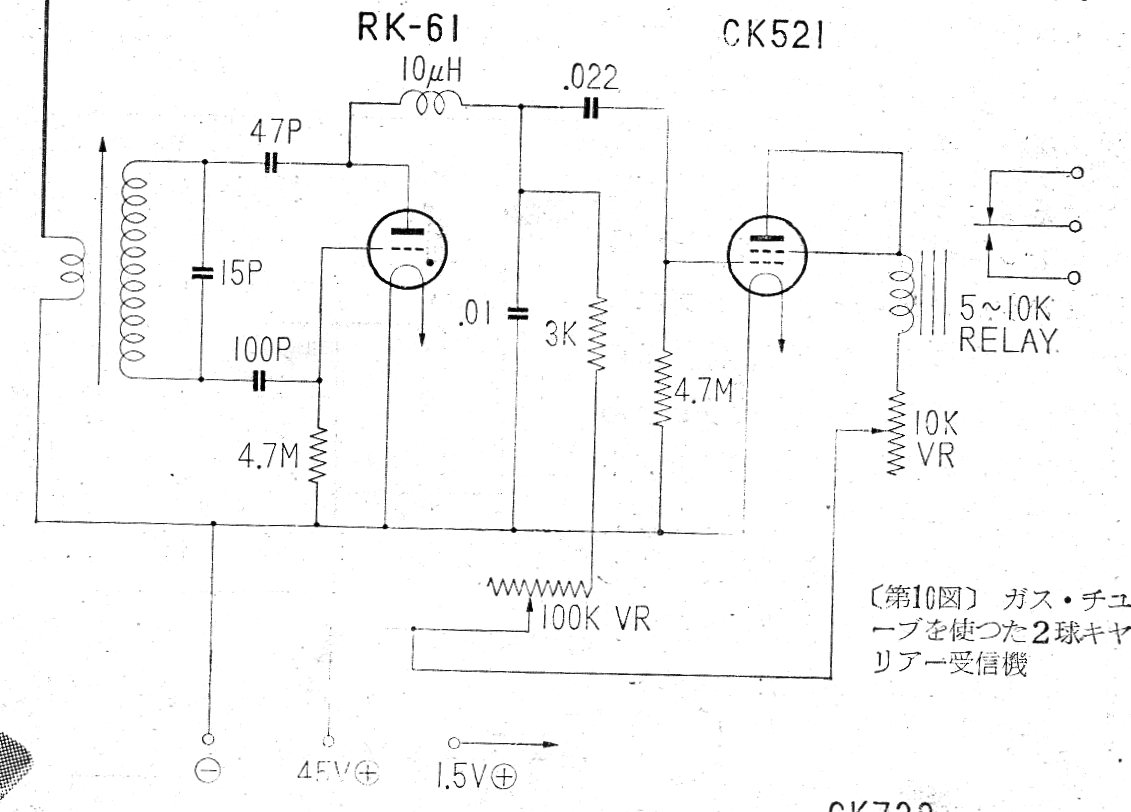

     This circuit is from an old Japanese publication of 1962. The circuit uses two batteries, one for the filaments of the tubes and the other one of high voltage for the plate circuits.
