12W Amplifier 6BX7 (T175E)

Details
Written by: Newton C. Braga

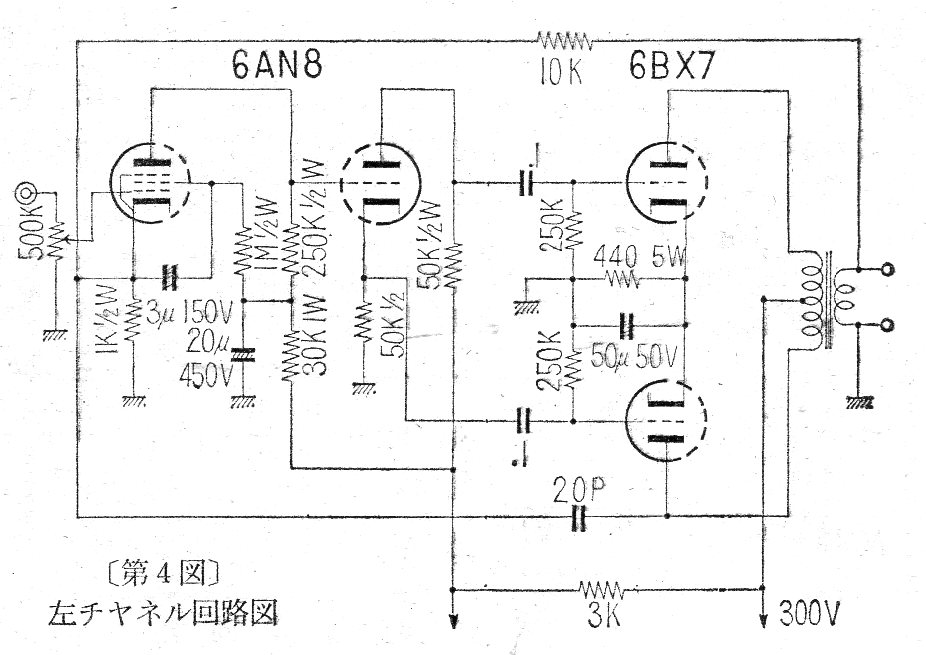

    This 2-tube amplifier was found in a Japanese publication of 1964. The circuit has excellent sound quality. The power supply is not given and must provide a voltage of 300 V.
