80 and 40 meters Transmitter (T146E)

Details
Written by: Newton C. Braga

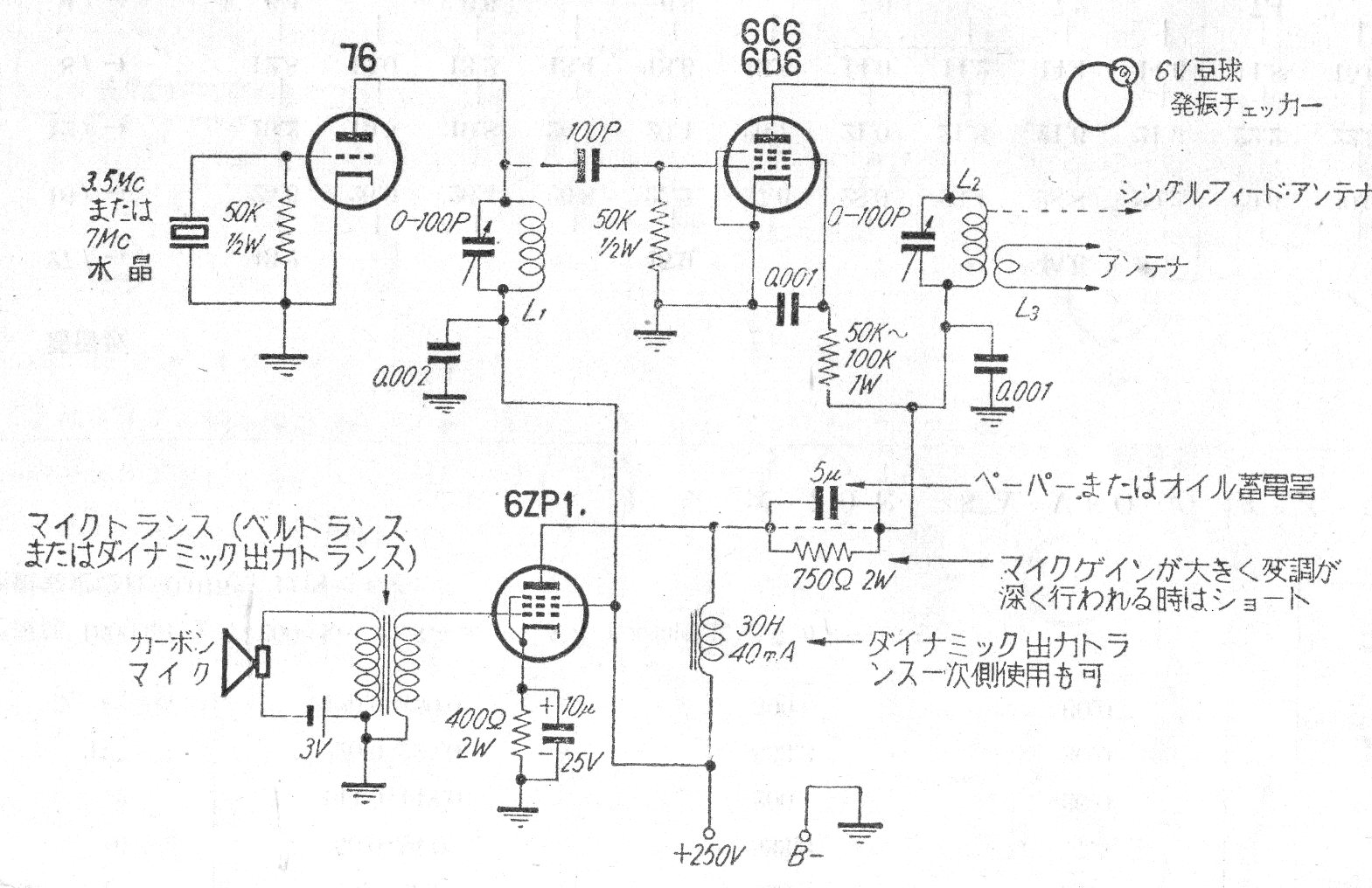

     This transmitter for the 3.5 and 7 MHz ham radio was found in a 1950s Japan publication. No information was given on the coils and the power supply.




| Haga click en la imagen para ampliar |
