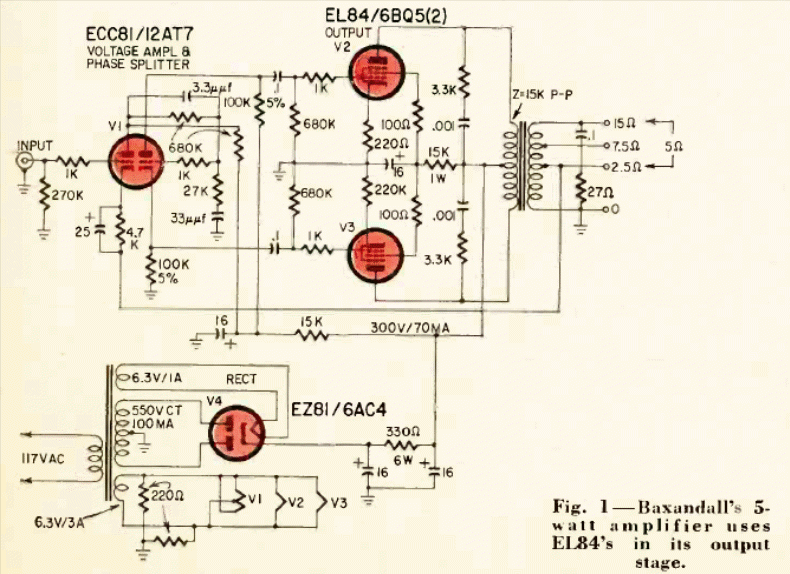

This is the circuit of a European commercial amplifier. It was published in Radio Electronics magazine in September 1958 and has a power of 5 watts with good sound quality.
| Clique na imagem para ampliar |
EL84 Amplifier (T1695E)
