3 to 40 MHz preselector (T1733E)

Details
Written by: Newton C. Braga

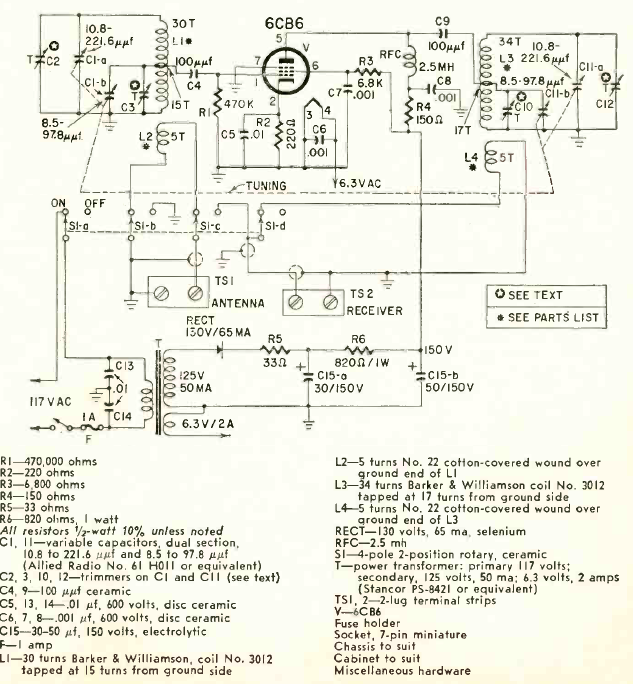

This shortwave preselector for the 3.5 to 40 MHz bands was found in Radio Electronics magazine from February 1960. The circuit uses only one tube and is powered by the power grid.
