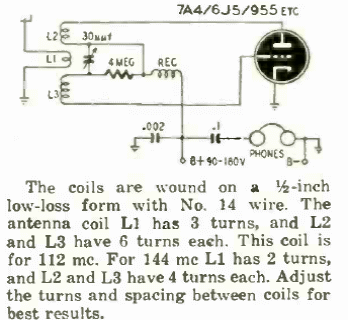

This circuit for VHF uses a single tube. The circuit is regenerative type for the 144 MHz band. Found on a Radio Craft from February 1948. Coil data is provided.
Simple VHF Receiver (T1237E)
- Details
- Written by: Newton C. Braga
This circuit for VHF uses a single tube. The circuit is regenerative type for the 144 MHz band. Found on a Radio Craft from February 1948. Coil data is provided.
