Two Tube Amplifier (T1260E)

Details
Written by: Newton C. Braga

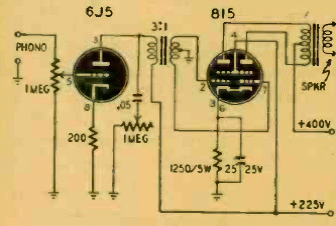

This circuit that uses a transformer for coupling between stages was found in Radio Craft in April 1948. The power is 12 W, and the supply must be made with a source with the indicated voltages.
