Level Detector (T1735E)

Details
Written by: Newton C. Braga

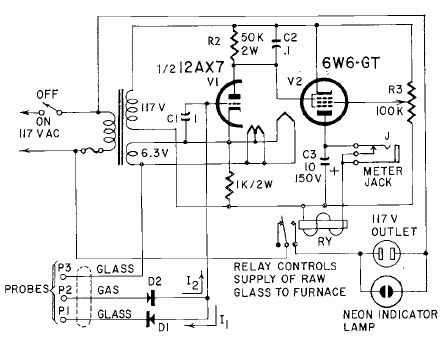

This level sensor circuit was found in an article in Radio Electronics magazine from March 1960. It was used in glass manufacturing equipment.
