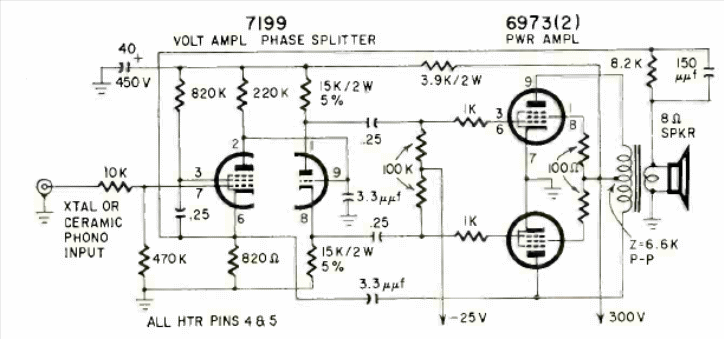

3-tube amplifier (T1716E)

Details
Written by: Newton C. Braga



Found in Radio Electronics magazine from 1959, this high-fidelity amplifier has 15 W of power. Power supply was not provided.
