Ohmmeter up to 300 M ohms (T1362E)

Details
Written by: Newton C. Braga

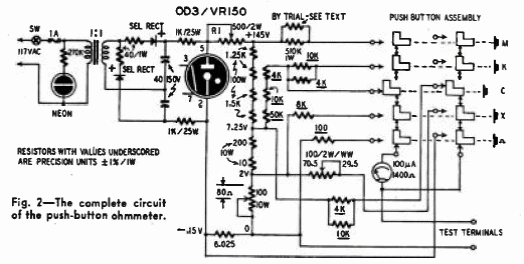

This circuit was published in the April 1949 issue of Radio Electronics. The circuit measures resistances up to 300 M ohms using an ordinary analog indicator which could be a multimeter.
