3-tube Receiver (T1157E)

Details
Written by: Newton C. Braga

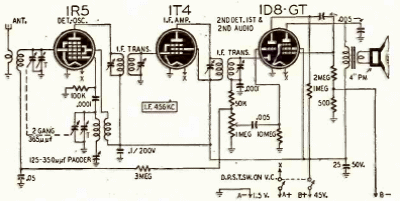

This medium wave receiver was found in a Radio Craft from June 1947. The circuit is for batteries and has a loudspeaker output, with excellent sensitivity.
