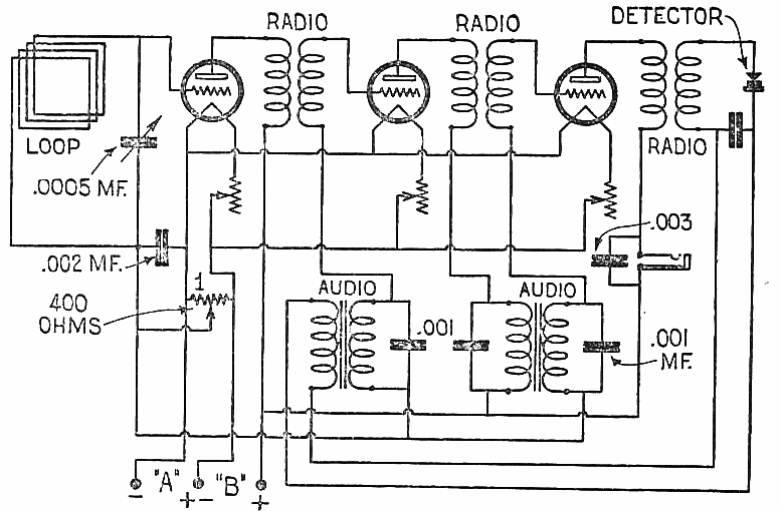

Reflex receiver with loop antenna (T1659E)

Details
Written by: Newton C. Braga



This 3-valve receiver was found in a publication by Edelman from 1924. The circuit has two supply voltages, B being 60 to 90 V.
