Compactron tubes television (T1774E)

Details
Written by: Newton C. Braga

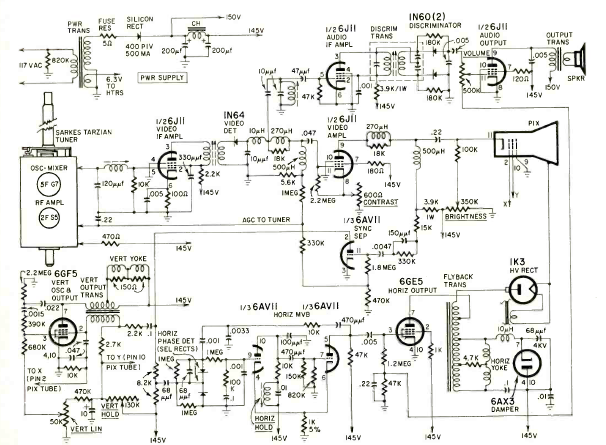

Launched at this time, compactron tubes were successful because they were efficient and small. The Diagram is from a television from the time that appeared in Radio Electronics magazine in April 1961.
