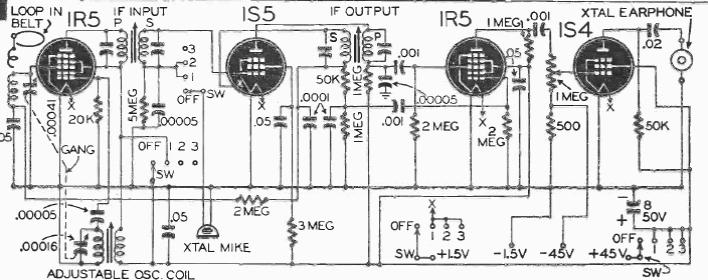

Pocket Tube Radio (T1621E)

This sensitive 4-tube, battery-powered receiver was found in a 1949 Radio Electronics. The circuitry was wired in crystal earphones.

| Clique na imagem para ampliar |
