Dutch Compact Radio (T1295E)

Details
Written by: Newton C. Braga

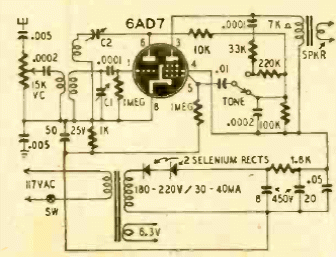

This post-war receiver was published in a Radio Craft of August 1948. The dual tube circuit tuned to the midwave range and had loudspeaker listening. Power was supplied using solid state rectifier diodes.
