Calibration monitor (T1267E)

Details
Written by: Newton C. Braga

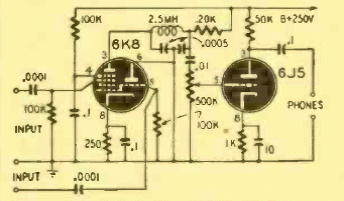

This circuit can be used to help calibrate radio receivers. It was suggested by a May 1948 Radio Craft. Power is taken from the radio in calibration and the headphone must be high impedance.
