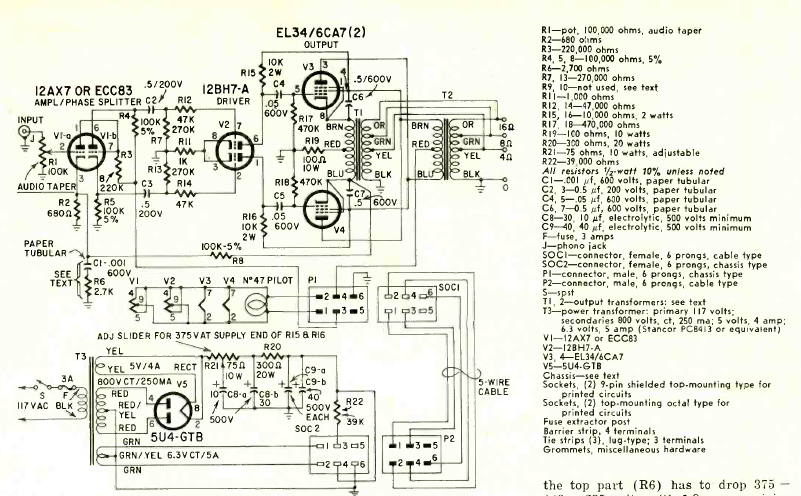

This amplifier, whose mounting on a printed circuit board was described in Radio Electronics of October 1960, has 35 W of power. The power supply uses a transformer and a set of 5 tubes.
| Clique na imagem para ampliar |
35W Amplifier (T1747E)
- Details
- Written by: Newton C. Braga
