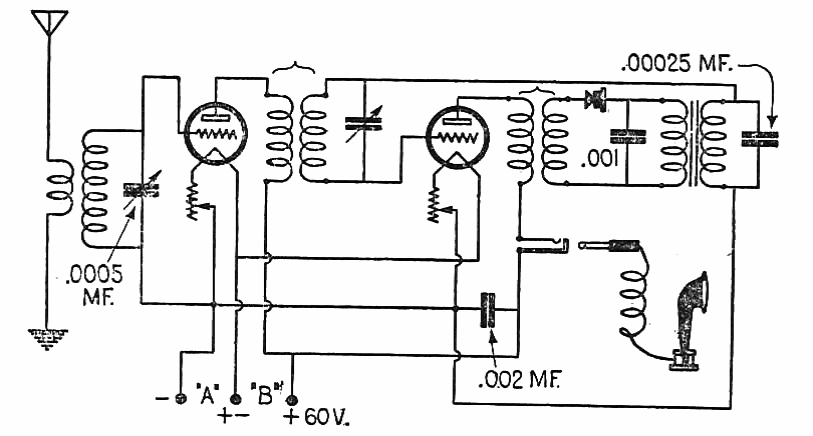

Reflex receiver with speaker listening (T1565E)

This interesting 1924 triode tube receiver was found in a documentation by Gernsback. Observe supply voltages. Coils are for tuned wavebands.

| Clique na imagem para ampliar |
