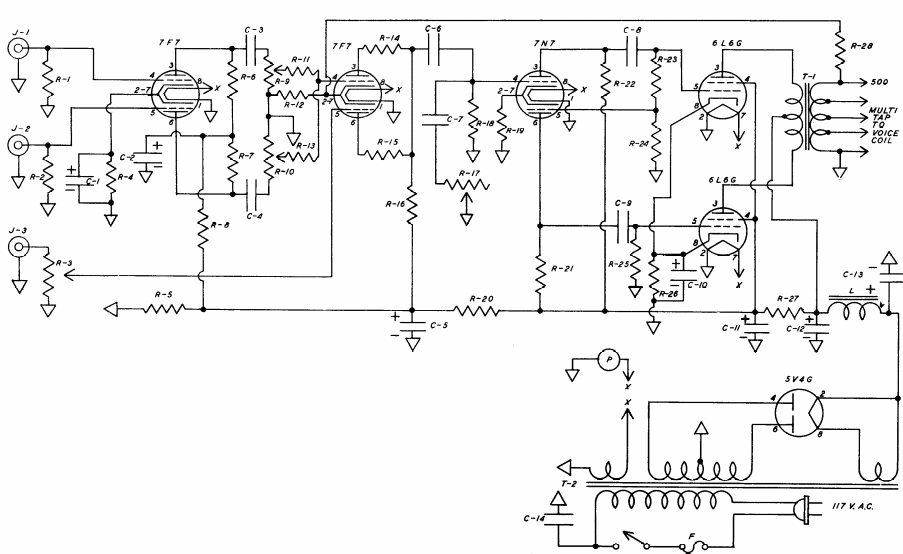

This amplifier was found in a tube equipment manual from 1947. The high-fidelity circuit has pentode tubes at the output and a source with transformer.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
25W Amplifier (T495E)
- Details
- Written by: Newton C. Braga
