RF Wattmeter (T789E)

Details
Written by: Newton C. Braga

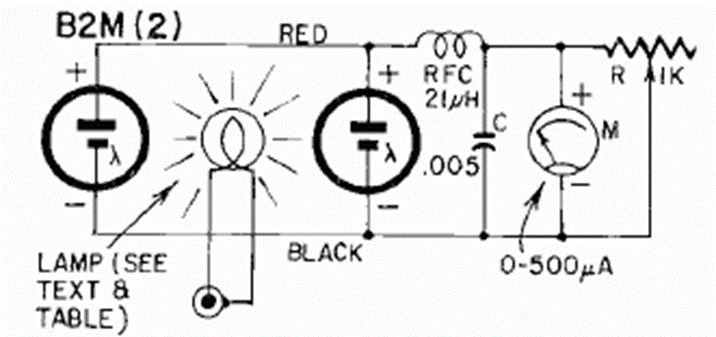

This circuit uses a lamp driven by the Hertz loop and measures its brightness with ordinary photovoltaic cells. The circuit is from a Radio Electronics from February 1964.
