75W Amplifier (T504E)

Details
Written by: Newton C. Braga

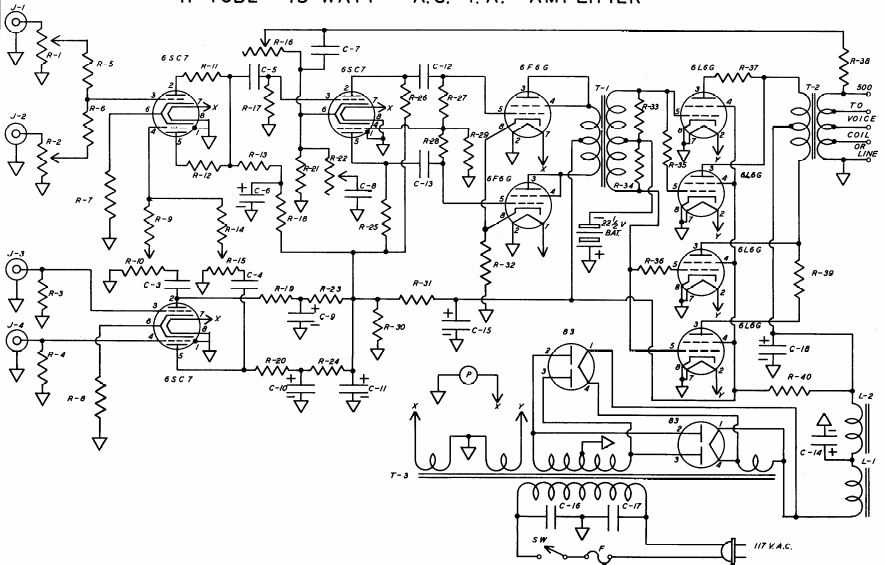

Found in a 1947 publication, this circuit uses 4 parallel/push-pull tuber in the output stage. The circuit employs dual power supply with two rectifier tubes.








| Clique na imagem para ampliar |




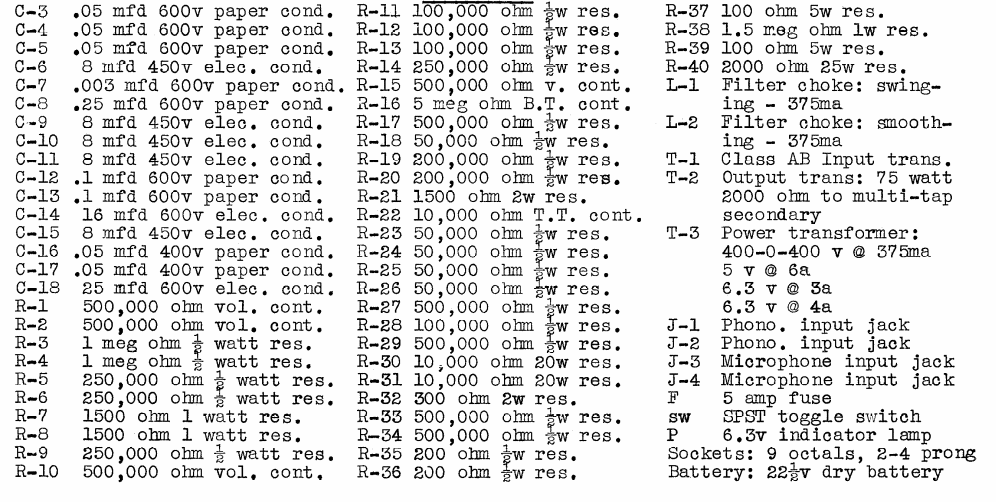

| Clique na imagem para ampliar |
