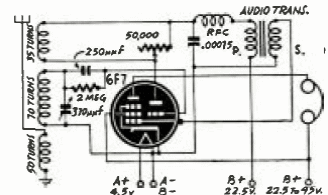

We found this circuit for high impedance headphones on a Radio Craft from April 1946. The circuit is for medium waves, requiring an external antenna and the supply must be done with the voltages indicated in the diagram.
Receiver 6F7 (T1033E)
- Details
- Written by: Newton C. Braga
