30W Amplifier (T489E)

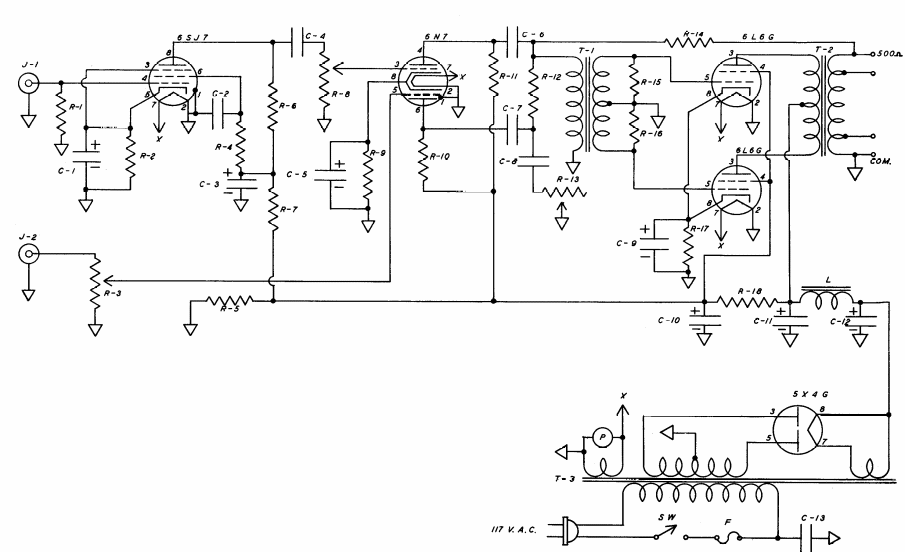

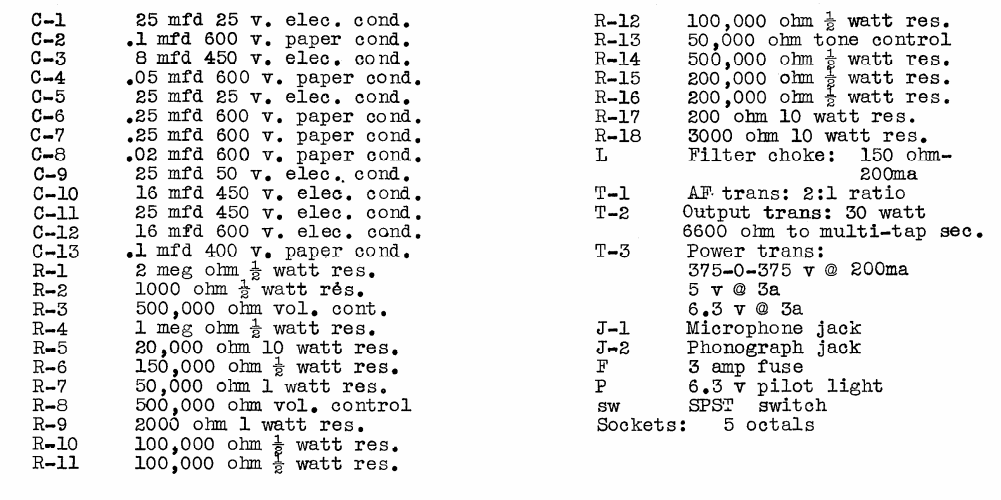

This Public Address amplifier was found in an American publication from 1947. The circuit uses 5 tubes and a transformer source.
