Explorer for all ranges (T1098E)

Details
Written by: Newton C. Braga

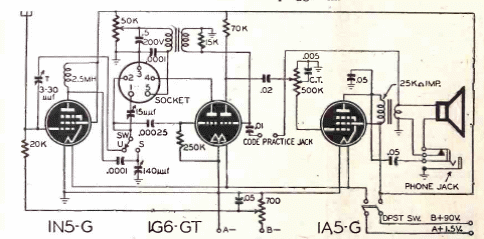

This circuit was found in a Radio Craft from October 1946. Power supply not shown, and tubes are 1.5V filament types.
