15W Amplifier (T483E)

Details
Written by: Newton C. Braga

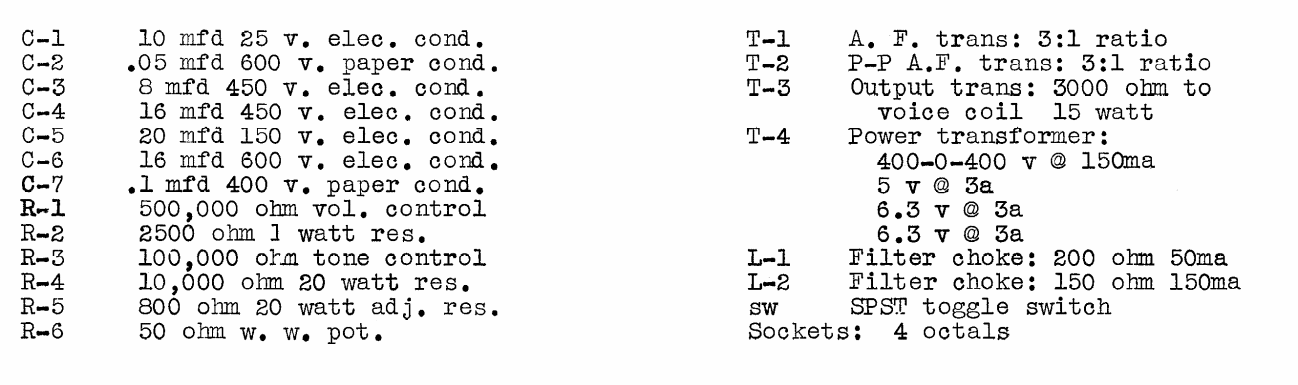

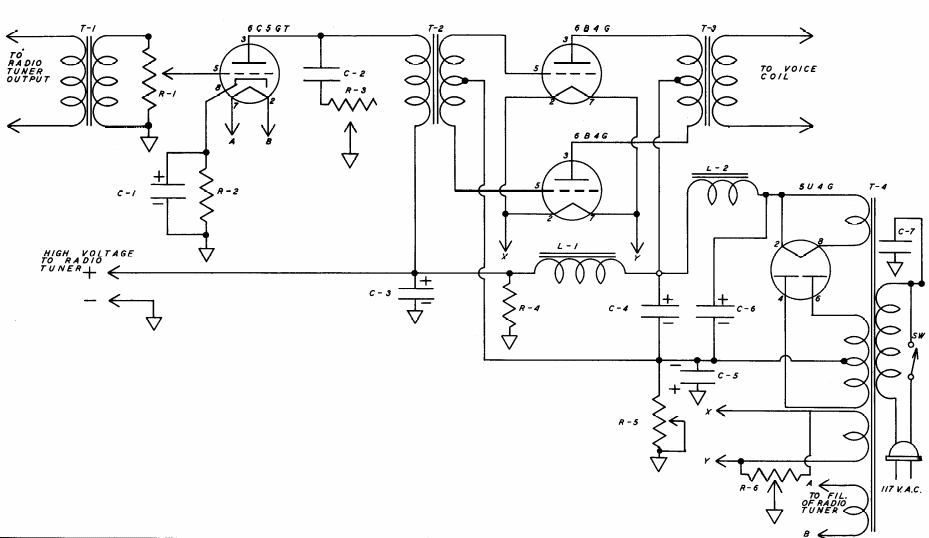

This is a low-gain amplifier to operate as a booster. We found it in an American documentation from 1947. The circuit uses a coupling transformer at the input.
