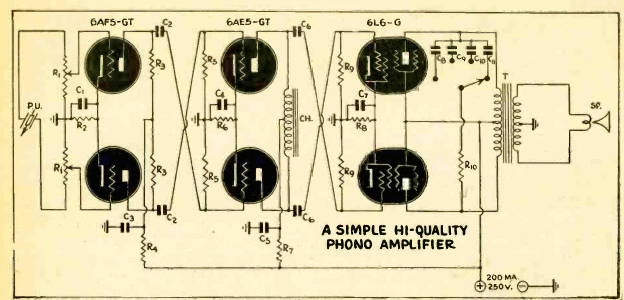

In the figure we have a diagram of amplifier for record player from 1943. The circuit uses 6 tubes, and no power supply was given. Note the push-pull output and how the phase shift is performed to excite the output stage.
