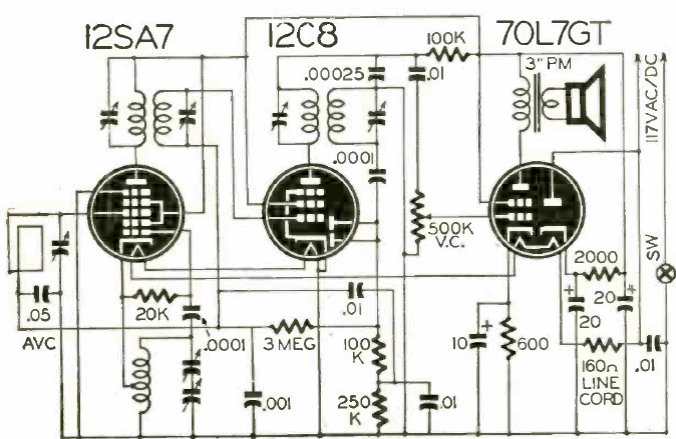

An interesting configuration that we found in a Radio Craft from 1946. The circuit has similarities with the previous one, with filaments connected in series but the conversion of conventional superheterodynes. The output is on loudspeaker and the power supply is direct from the mains.
| Clique na imagem para ampliar |
