45W Amplifier (T497E)

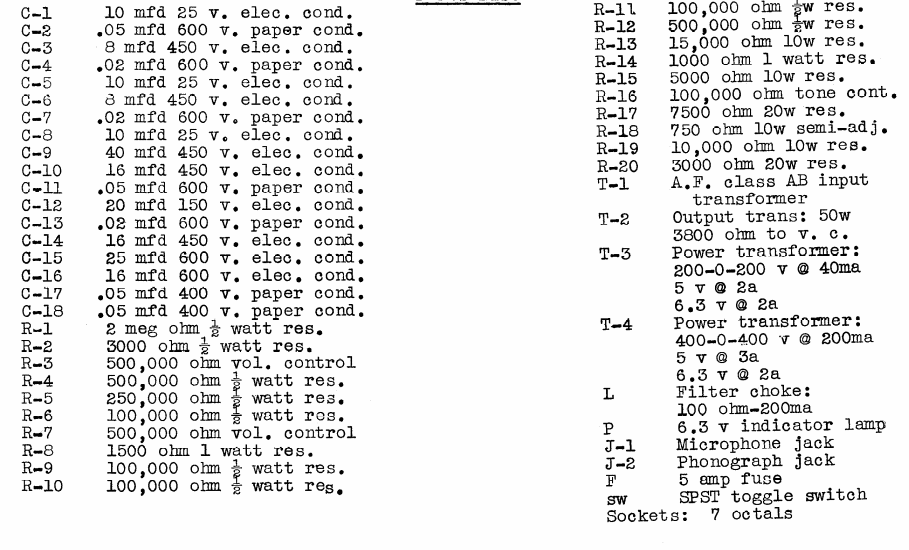

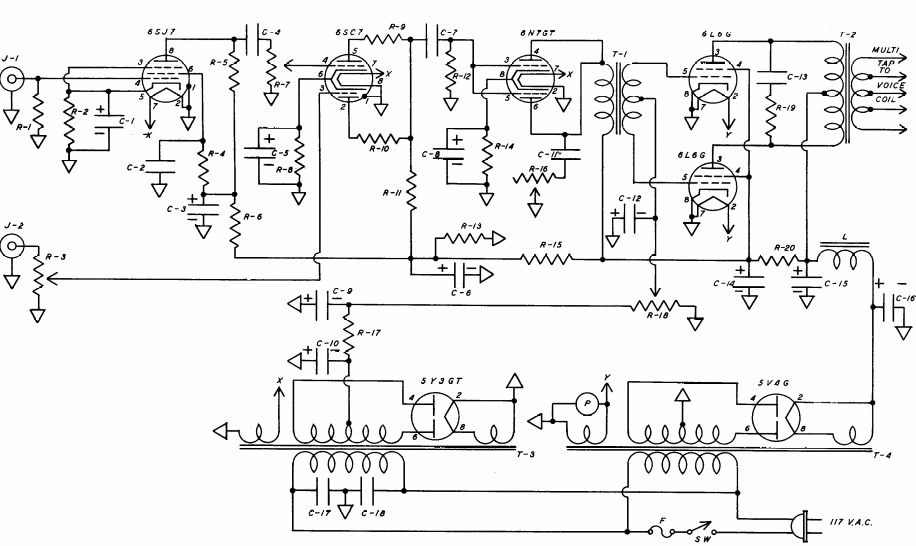

This Public Address amplifier was found in a 1947 amplifier manual. The power supply uses two transformers with two rectifier tubes.

| Clique na imagem para ampliar |

Soft Start Regulator (CB15498E)
When establishing the voltage at the input of this regulator, the output voltage rises smoothly until...
High Voltage SCR Variable DC Power Supply (CB13382E)
We found this circuit in a documentation about SCRs from the 70s. The circuit can be implemented with a...
Fiber Optic Link (CB14351E)
The operational ones used in this project are old types from National Semiconductor, since the...
