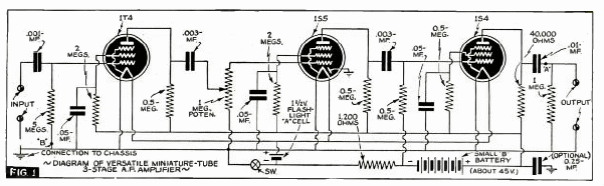

This miniature 3-tube amplifier was found in documentation from the 1940s. Powered by batteries, it is intended for applications as a low-power auxiliary amplifier for the bench and other applications. The output is high impedance and the tubes are 1.5V wire types.
