6VDC Amplifier (T485E)

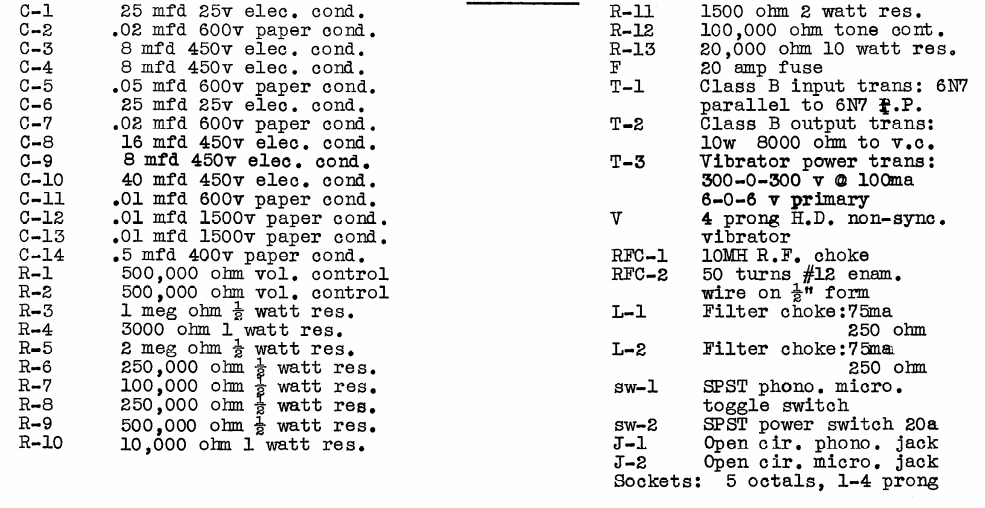

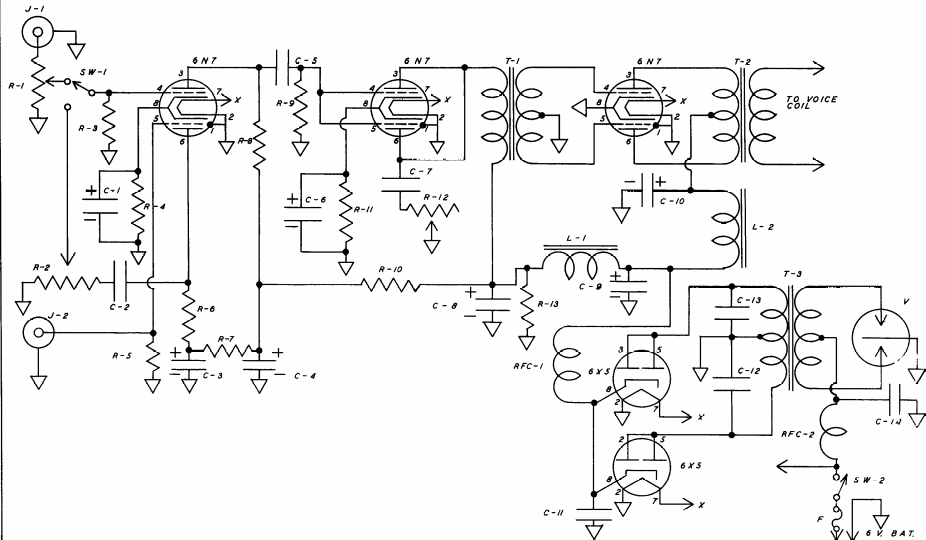

This drum amplifier was found in an American documentation from 1947. It makes use of a mechanical vibrator to generate high voltage for the tubes.

| Clique na imagem para ampliar |

Microphone Preamplifier (CB10228E)
This circuit is from a 1986 Revista Española de Electrónica. It consists of an amplifier with...
Bipolar Transistor Colpitts Oscillator (CB4582E)
The oscillator shown in the figure can generate signals between 3 and 15 MHz approximately, depending...
Delayed Pulse Generator (CB6470E)
This circuit was found in a 1967 documentation. The switch diode is a component of the time and is...
