3-tube Receiver Amplifier (T723E)
- Details
- Written by: Newton C. Braga

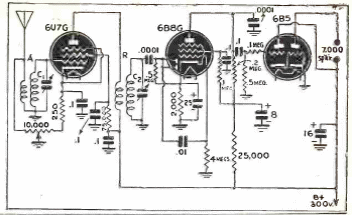

The circuit shown was found in a magazine from 1943. The circuit tunes to the mid-wave band providing a headphone output signal. The power supply was not indicated.
