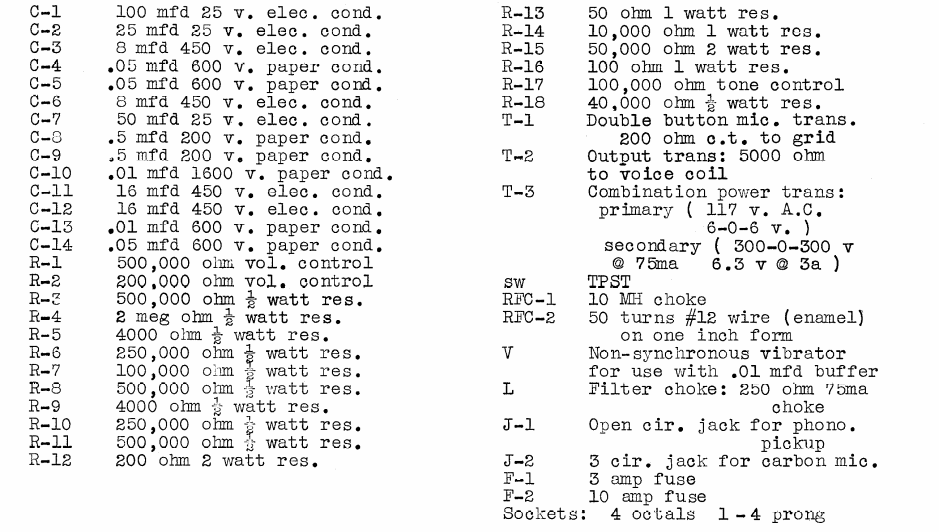

5-tube 3W Amplifier (T478E)

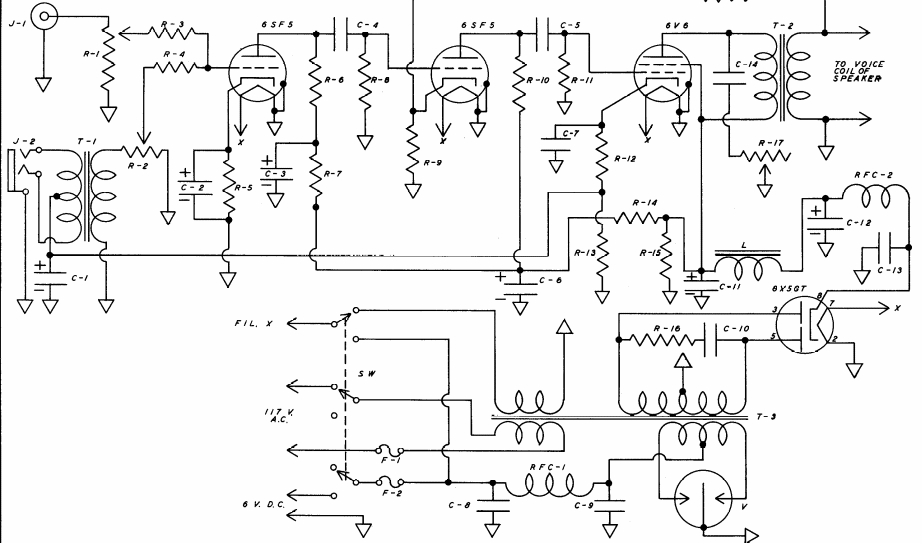

This circuit was obtained from a 1947 amplifier manual. The circuit makes use of a transformer source, but it can also be battery powered.

| Clique na imagem para ampliar |
