12W Amplifier (T493E)

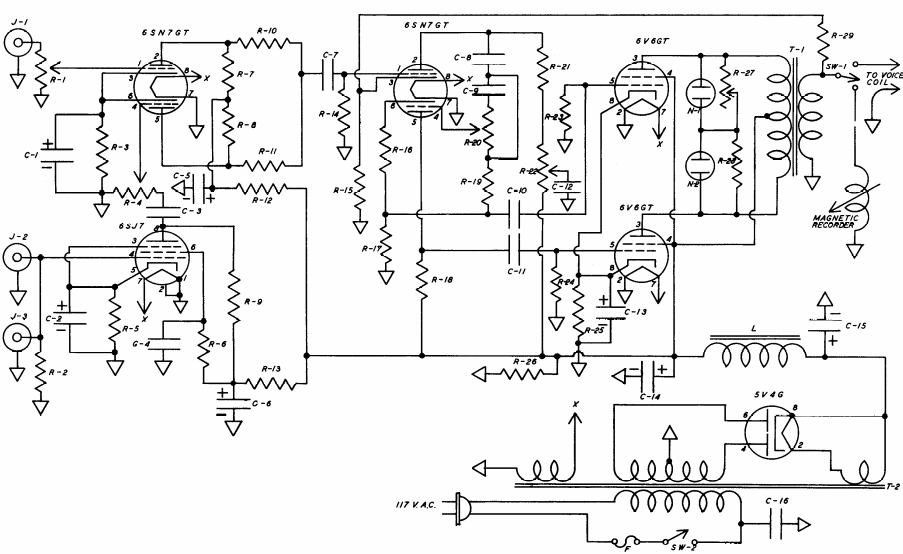

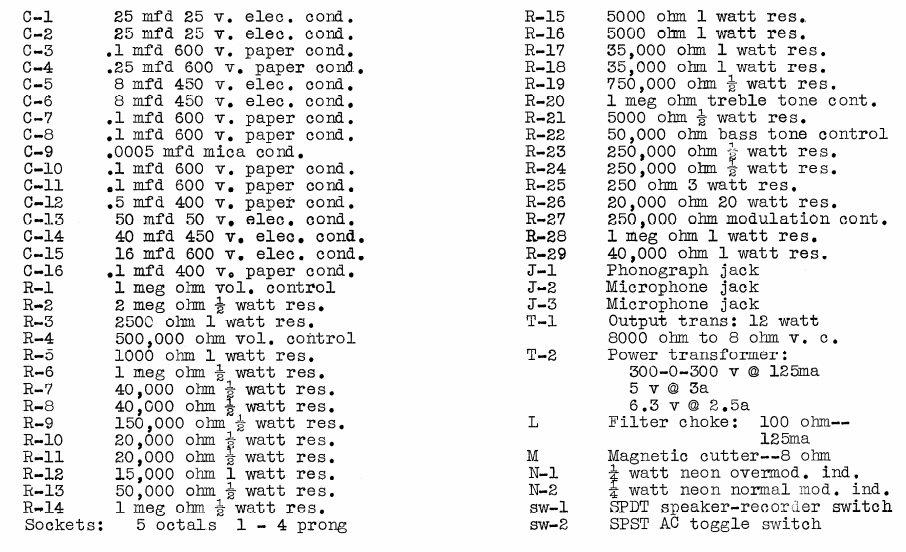

This amplifier for playback of recordings was found in a 1947 manual. It uses a push-pull output with a tube power supply.
