Code Practice Oscillator (T1541E)

Details
Written by: Newton C. Braga

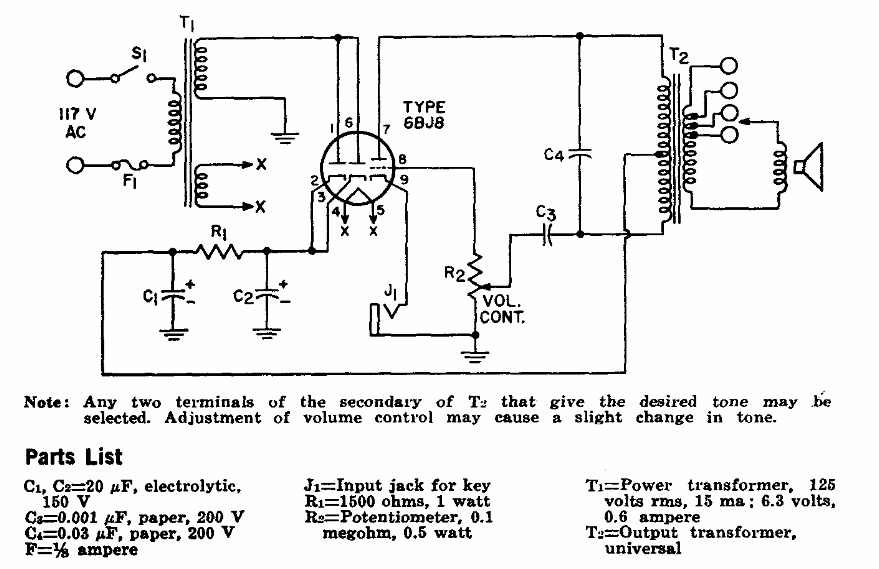

Found in the 1975 RCA tube manual, this circuit appears elsewhere in this section. The circuit uses contemporary components and is powered by the power grid.




| Clique na imagem para ampliar |
