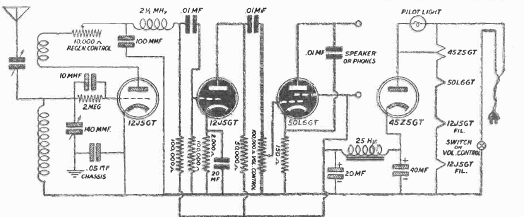

Found in a 1949 Radio Electronics, this 4-tube circuit was fed directly from the mains with a half-wave rectifier.
4 tube radio (T1607E)
- Details
- Written by: Newton C. Braga
Found in a 1949 Radio Electronics, this 4-tube circuit was fed directly from the mains with a half-wave rectifier.
