Reflex receiver with loop antenna (T1568E)

Details
Written by: Newton C. Braga

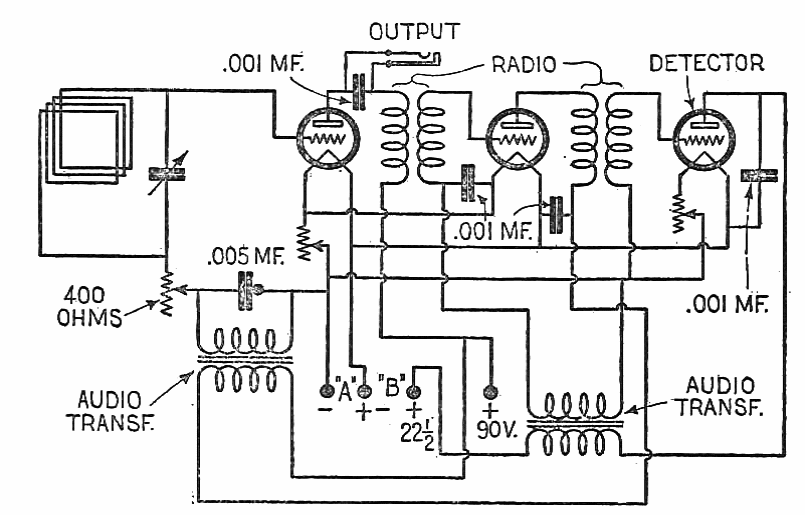

This receiver was found in a 1924 book by Gernsback. The circuit uses three tubes and is powered by 3 batteries of different voltages, common at the time.
