RF Probe (T1691E)

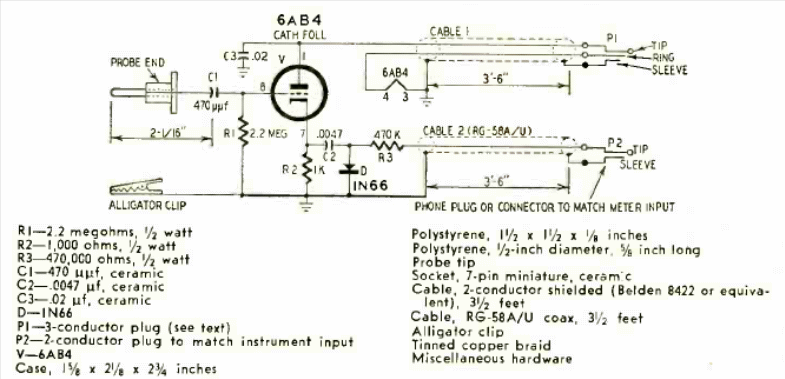

This high-impedance probe for oscilloscopes was found in a July 1958 Radio Electronics magazine. The circuit did not include a power supply.
