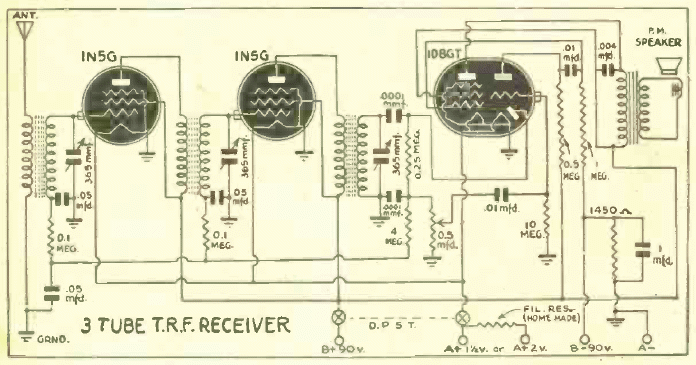

This 3-tube circuit for the mid-wave band was found in a 1943 publication. The circuit does not include a power supply and has a loudspeaker tap. Note that this is a direct amplification circuit with 3 tuning stages.
