1973 Microwave Oven (CB24258E)

Details
Written by: Newton C. Braga

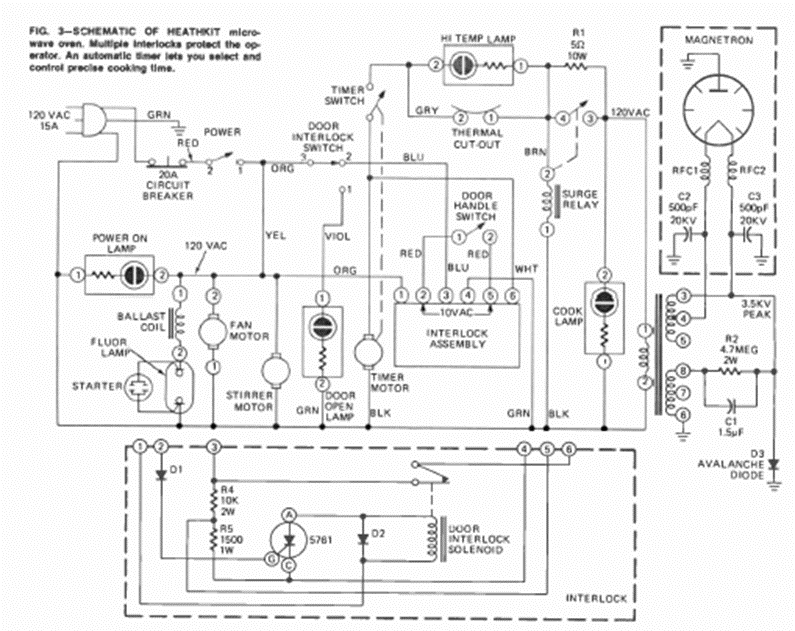

This is a typical circuit for an old microwave oven. We took it from an August 1973 Radio Electronics magazine, from an article that taught how to make repairs.




| Clique na imagem para ampliar |
