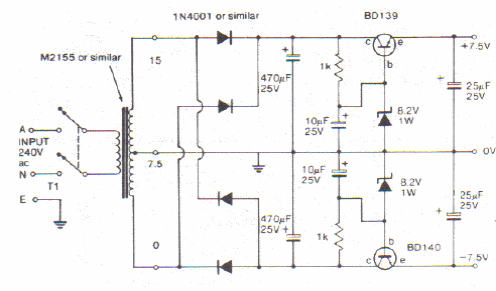

By changing the zener, other output voltages can be obtained for this symmetrical power supply. With the transistors indicated the maximum current is in the order of 500 mA.
Symmetrical power supply (CB21692E)
- Details
- Written by: Newton C. Braga
By changing the zener, other output voltages can be obtained for this symmetrical power supply. With the transistors indicated the maximum current is in the order of 500 mA.
