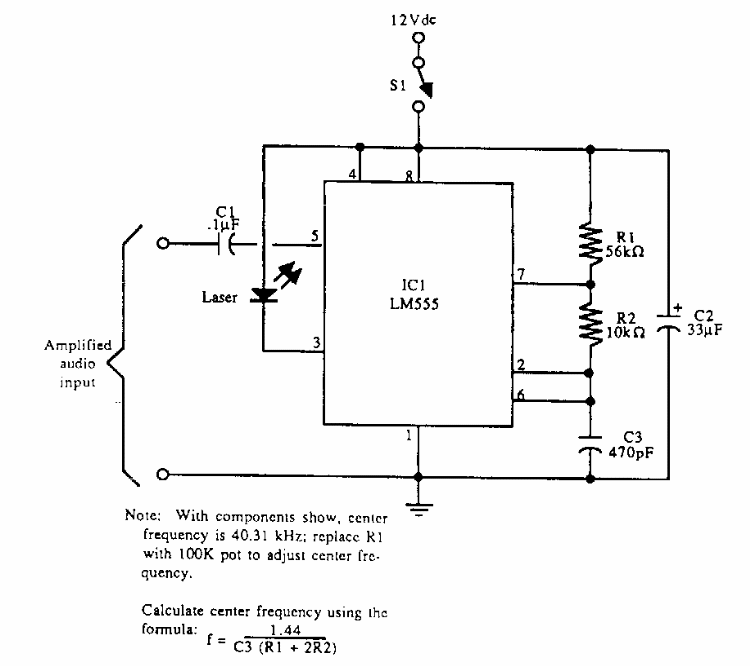

Transmitter for LASER diode (CB21007E)

This modulator circuit was found in an American documentation from the 90's. The circuit uses a low power LASER diode. Power is supplied with 12 V.

| Clique na imagem para ampliar |
