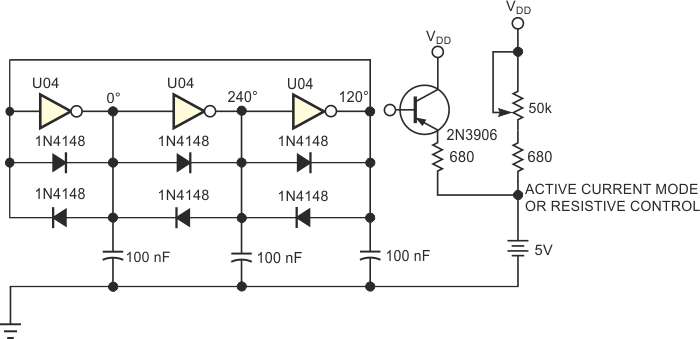

Based on 74HC digital circuits, this circuit generates signals in three phases. The frequency depends on the capacitors and the transistor is a general-purpose type. The oscillation point is set on the potentiometer.
