7W Hybrid Amplifier (CB21794E)

Details
Written by: Newton C. Braga

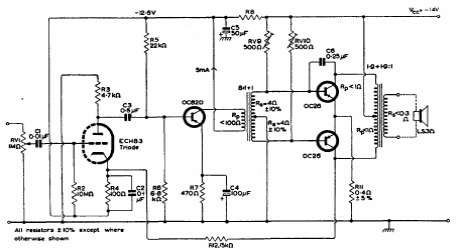

Found in a Mullard Manual from 1960, this circuit contains a transistor push-pull output being driven by a common triode in a tube amplifier.
