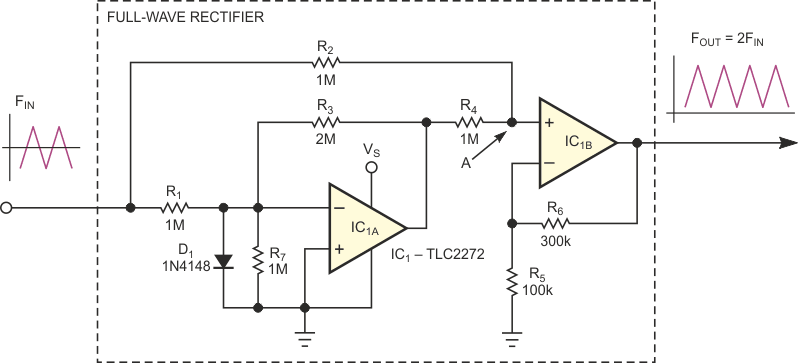

The purpose of the circuit below, based on the Texas Instruments TLC2272, is to double the frequency of a triangular signal. The maximum frequency is on the order of 20 kHz for the operational, but another type can be used for higher frequencies.
